Metal Tile Roof System

Product Name :Metal tile roof system

Material :AL-6005-T5 Aluminum Alloy & 304 Stainless Steel

Standard :AS/NZS 1170

Wind Load :216 KM/H =60 M/S

Max Snow Load :1.4 KN/M²

Applicable Module :Framed or Frameless

Module Orientation :Portrait or Landscape

Surface Treatment :Anodized

Certificate :ISO9001 , CE, etc

Installation Site :Roof

Dimensions :Customized

Lengths :Customized

Warranty 10 Years Warranty, 25 Years Service Life

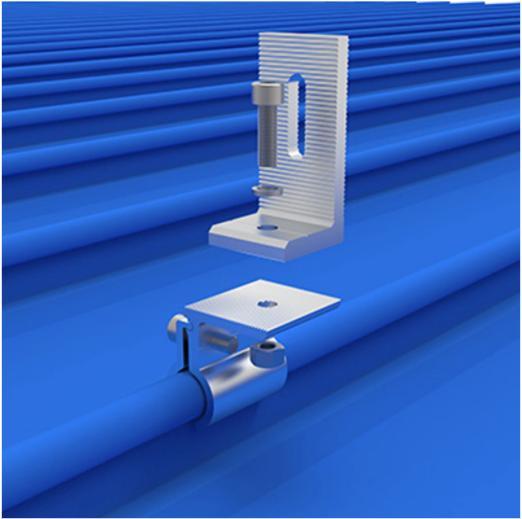

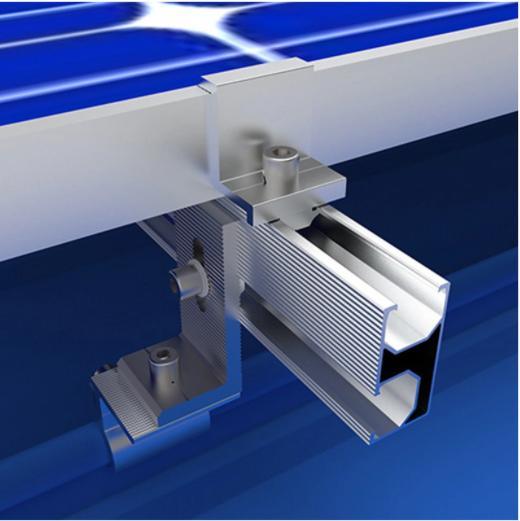

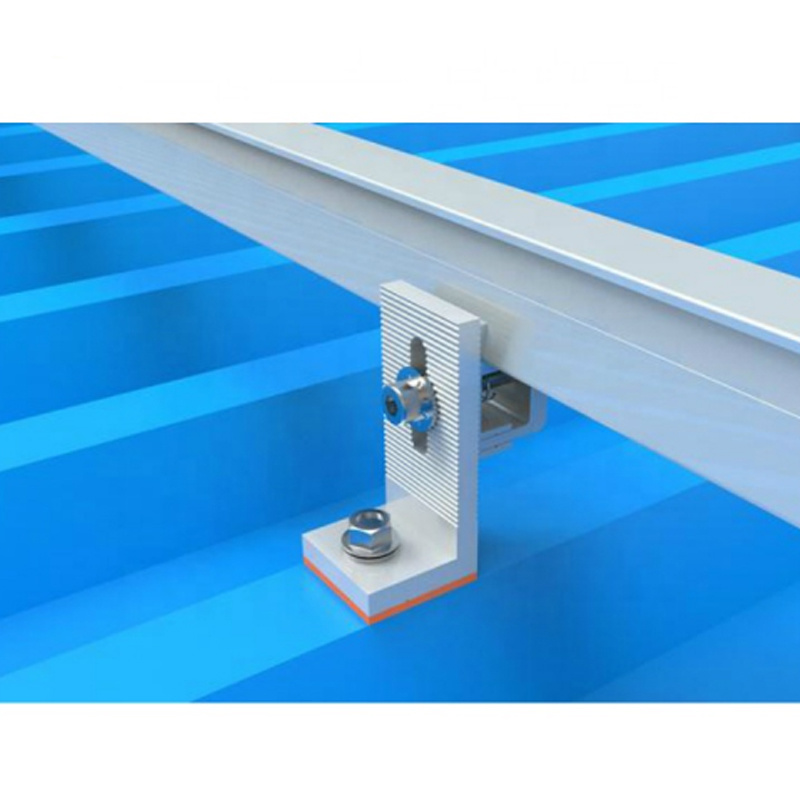

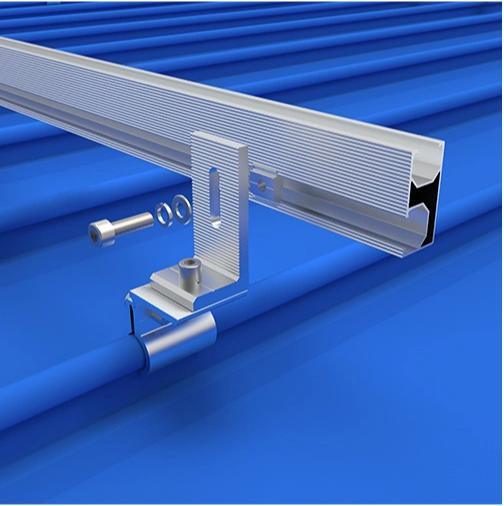

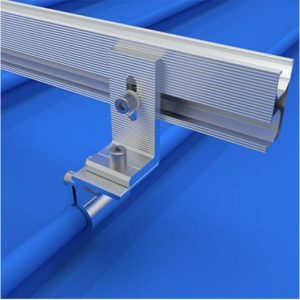

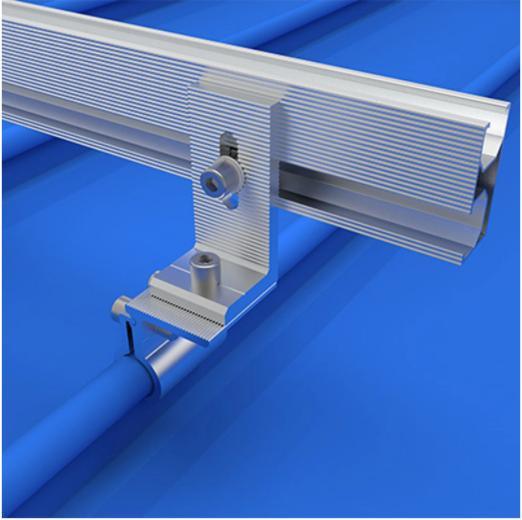

Metal tile roof system are designed for cost-effective installation on tin roofs, used in conjunction with wood screws(or hanger bolts). Designed as an integrated L foot and waterproof board, it can achieve ultra-fast, bolt installation and efficient waterproof performance. It provides a firm fixation by directly fixing the wood screw connection L feet to the wooden beams under the iron roof, thereby ensuring maximum stability with the smallest weight. Various system combinations can be directly connected to all rail components quickly.

Metal tile roof system is designed to securely and efficiently mount solar panels on residential and commercial rooftops. It consists of L-shaped brackets that are attached to the roof structure and provide a stable base for the solar panels.



Features:

  1. Durable Construction:

The system is made from high-quality materials, such as aluminum or stainless steel, which are resistant to corrosion and can withstand harsh weather conditions.

  1. Easy Installation:

Metal tile roof system is designed for quick and easy installation.  It typically requires fewer components and tools, reducing installation time and costs.

  1. Secure and Reliable:

Metal tile roof system provides a secure and stable foundation for solar panels, ensuring they remain in place even during high winds or other extreme weather events.
